Smoke Chambers: What You Should Know

The smoke chamber funnels smoke and heat from your firebox into the flue lining. When this area is rough, deteriorated, uninsulated, or improperly formed, it can affect draft, make cleaning difficult, and allow excessive heat transfer through masonry.

Before

The problems

Turbulence and inefficient smoke flow
Uninsulated surfaces and excess heat loss
Heat transfer toward nearby combustibles
Areas weakened by time, heat, moisture, and use
Faster creosote buildup
Hard-to-clean rough masonry surfaces

After

The Chamber-Tech solution

Smooth surface with less friction and turbulence
Insulated repair that reduces heat transfer
Added structural strength in the smoke chamber
More efficient flow of smoke and combustion byproducts
Less creosote buildup and easier future maintenance
Cost-effective repair compared with many alternatives

Code-minded restoration

NFPA 211 calls for smoke chamber inner surfaces to be parge coated smooth with an insulating refractory mortar. Chamber-Tech 2000 is designed for that smoke chamber restoration work.

High-heat concerns

During a high-heat event, a smoke chamber can reach extreme temperatures. Heat can transfer through masonry and create hazards when combustibles are too close.

More Chamber-Tech 2000!

Please find a breakdown of what makes Chamber-Tech 2000 special!

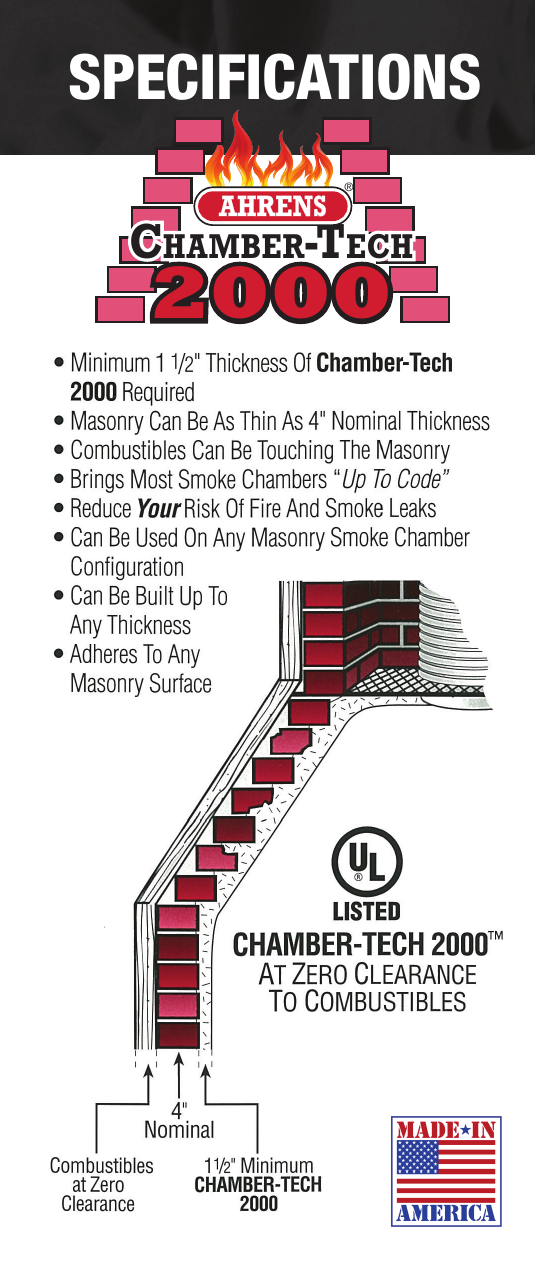

Ahrens Chamber-Tech 2000 specifications brochure panel — Specifications

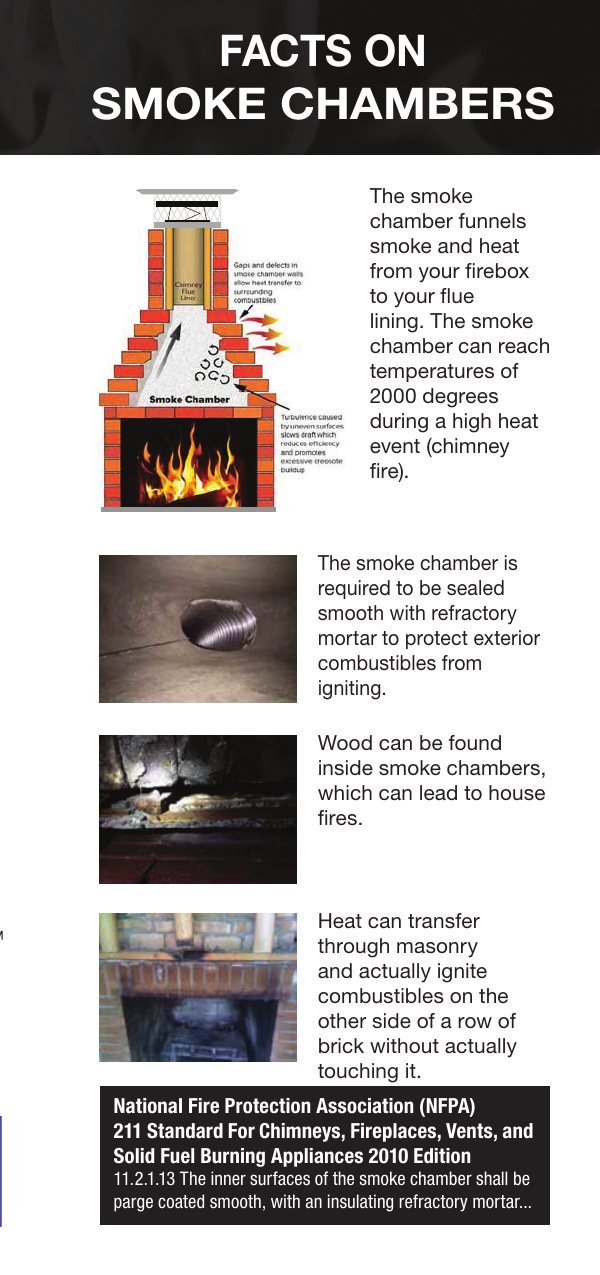

Facts on smoke chambers brochure panel — Facts on smoke chambers

Smoke chambers what you should know brochure panel — Smoke chambers: what you should know

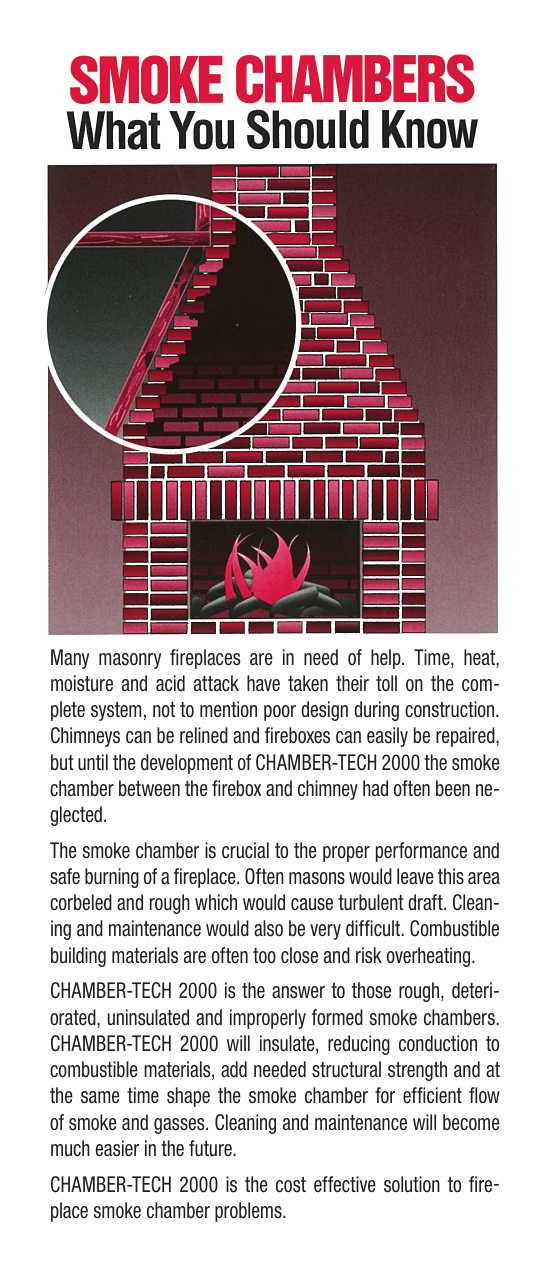

Smoke chamber restoration overview brochure panel — Restoration overview

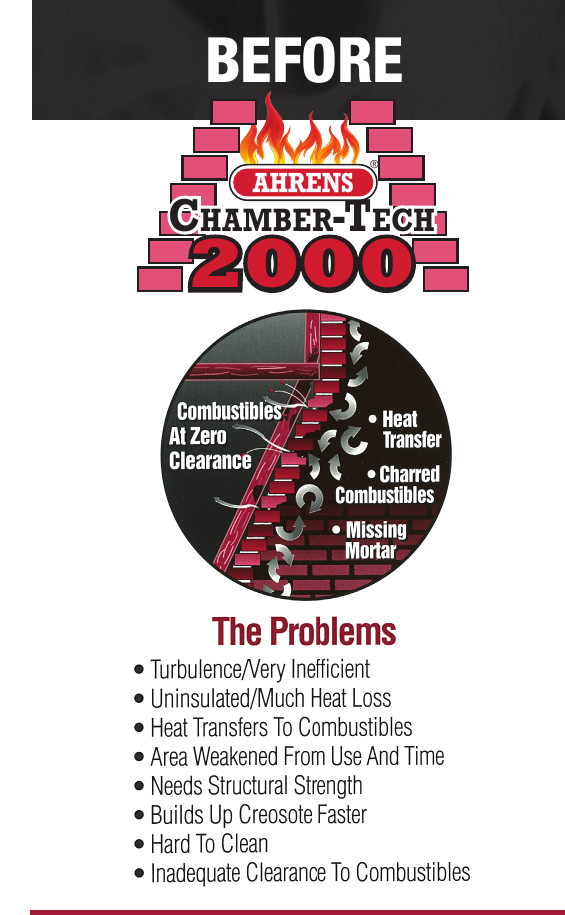

Before panel showing smoke chamber problems — Before: the problems

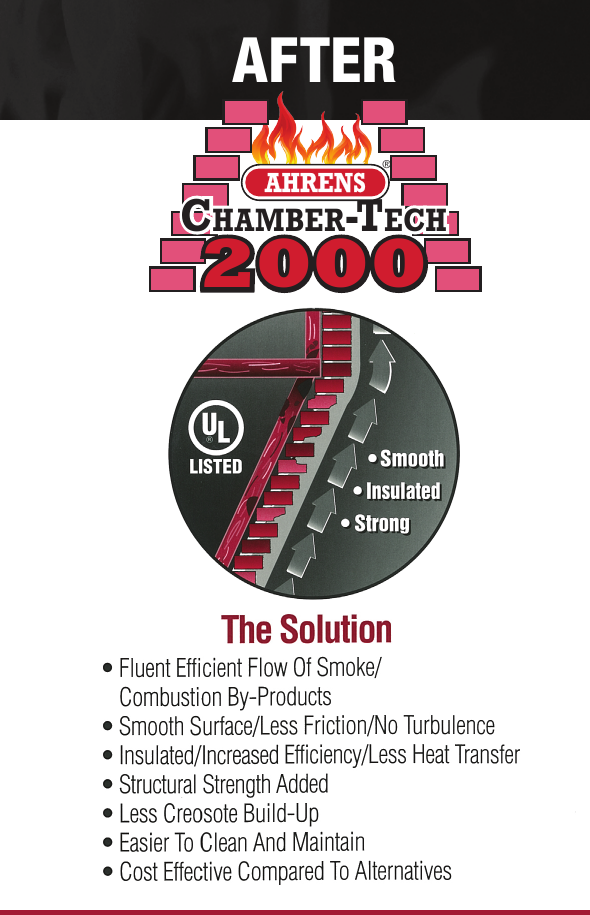

After panel showing smoke chamber solution — After: the solution

Bring most existing smoke chambers up to code brochure banner

Restore safety, draft, and durability

Our restoration work can include renovation, firebox repairs, smoke chamber parging, lining or relining when required, and masonry restoration for residential, historic, and commercial chimneys. Every fireplace is a little different, so we start with an inspection and recommend only what is needed.

What we look at during restoration

We evaluate the firebox, smoke chamber, flue condition, draft performance, and potential pathways where smoke, heat, or gases could enter walls and attics. Then we outline clear repair priorities.

Your restoration may include

Firebox repairs

Repair or rebuild damaged firebox components to restore safe operation.

Smoke chamber parging with Chamber-Tech 2000

Smooth and insulate rough, deteriorated, or improperly formed smoke chambers with an insulating refractory mortar system.

Brick & masonry repair

Replace cracked/spalled brick and repair mortar joints with durable materials.

Throat/damper area fixes

Address damper and transition-area problems that cause smoke or draft issues.

Chimney relining (when needed)

Install a properly sized liner when the existing flue is damaged or unsafe.

Water intrusion prevention

Identify leaks and recommend caps, crowns, flashing, or other remedies.

Chamber-Tech 2000 specifications

Chamber-Tech 2000 is used to repair smoke chambers that are rough, deteriorated, uninsulated, or improperly shaped. It insulates, adds needed structural strength, shapes the smoke chamber for better flow, and helps make cleaning and future maintenance easier.

Minimum 1 1/2 inch Chamber-Tech 2000 thickness required

Can be used on many masonry smoke chamber configurations

Adheres to masonry surfaces

Can be built up to the thickness needed for the repair

Designed to bring most existing smoke chambers closer to current standards

Why inspections matter

If you recently bought a home with a fireplace or you have not used yours in a while, an inspection is the best first step. Small issues like gaps, cracks, rough masonry, missing mortar, or water intrusion can turn into expensive repairs if ignored. We will explain what is urgent, what is optional, and what can wait.

Ready to restore your fireplace?

Call for an inspection and a clear plan. We will review the firebox, smoke chamber, flue condition, and any leak or draft concerns, then provide straightforward options.
